Instrument DOI: 10.60551/tjv0-p246

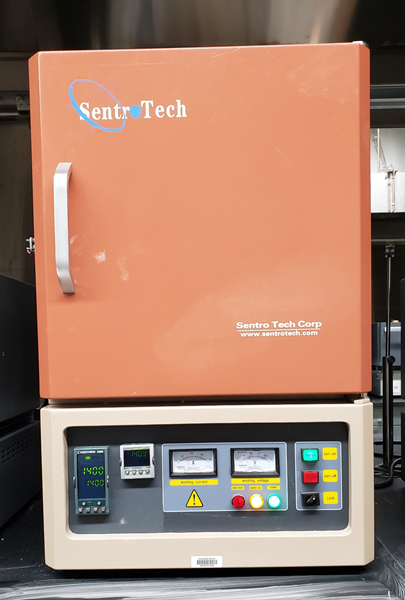

The 2DCC High-Temperature Muffle Furnace with maximum 1800 °C continuous operating temperature is utilized for the single crystal growth that melting point of crystal higher than 1100 °C. The furnace chamber will accept a sample of maximum 6” x 6” x 6”. Programmatic control allows for ±1 °C temperature accuracy.

high-temp muffle furnace

  • 1800 oC continuous operating temperature with ±5 oC heat uniformity
  • Maximum heating rate of 15 oC/min
  • ±1 oC temperature accuracy
  • Double shell design to ensure low temperature outside furnace
  • Over-temperature protection
